TV6536B-223.5M Helical Tunable Bandpass Filter

TV6536B-223.5M

Product Description

Item Specify
Reference Parts TV6536B-223.5M
Acceptable 221～245M
Product Series 7H5
Stock Quantity 0

Detail Electronic Characteristic

Item Specify

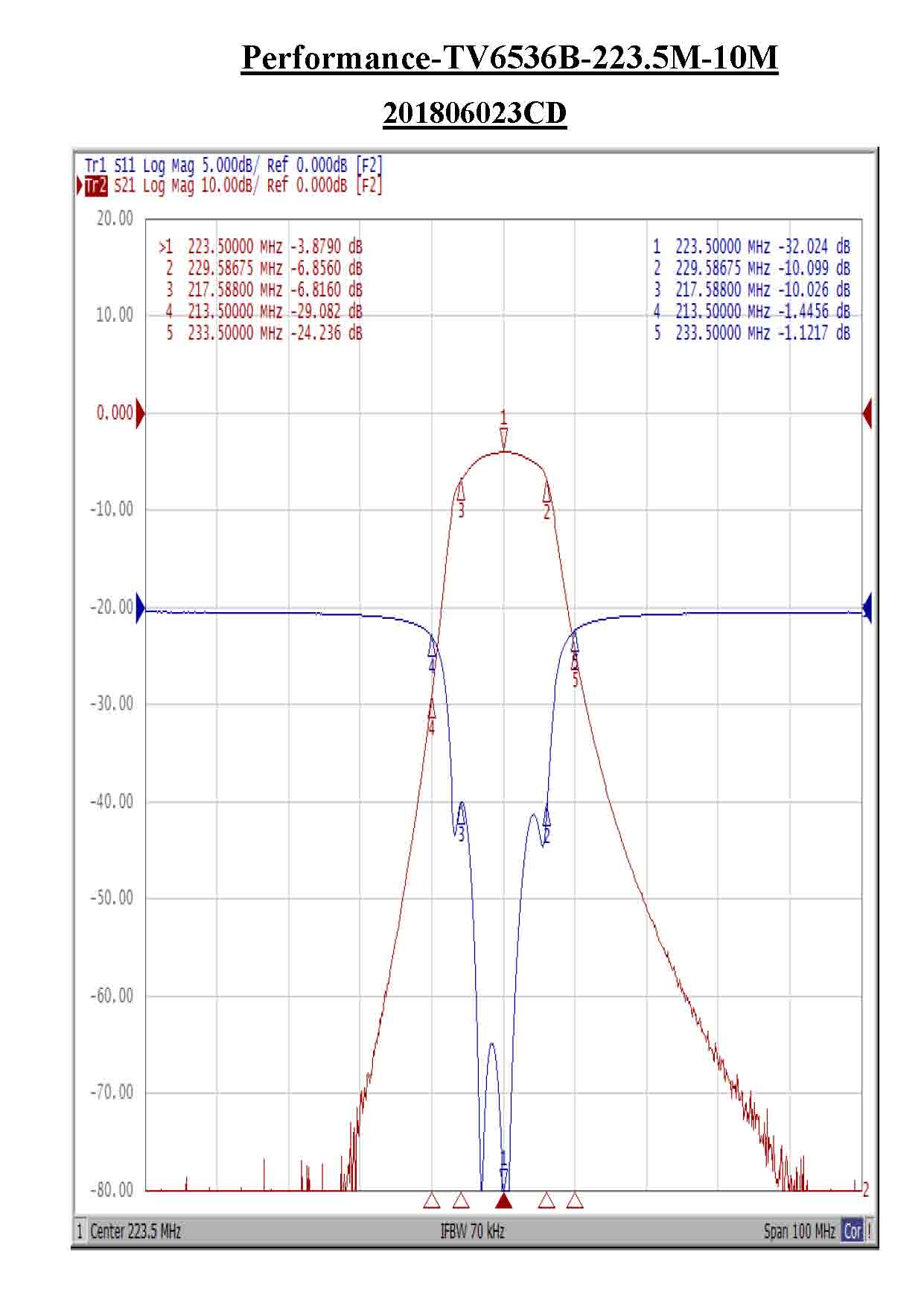

Center Frequency 223.5M
Insertion Loss 4.5
-3 dB Bandwidth 10M
Sensitivity
(Attenuation)		 F0-(10)Mhz 22
F0+(10)Mhz 17
Return Loss > 12 dB
Impedence In / Out :50 Ω
Ripple < 1 dB

Temperature Condition

Item Specify
Operating Temperature 0C ~60C
Storage Temperature -20C ~ +70C

Mechanical Condtion

Item Specify
Size Diagram 38 X 7.6
Height 12.5mm
Input Power 1~5W
