TT67516E-850M Helical Tunable Bandpass Filter
Product Description
| Item | Specify |
|---|---|
| Reference Parts | TT67516E-850M |
| Acceptable | 831～860M |
| Product Series | 7H3 |
| Stock Quantity | 0 |

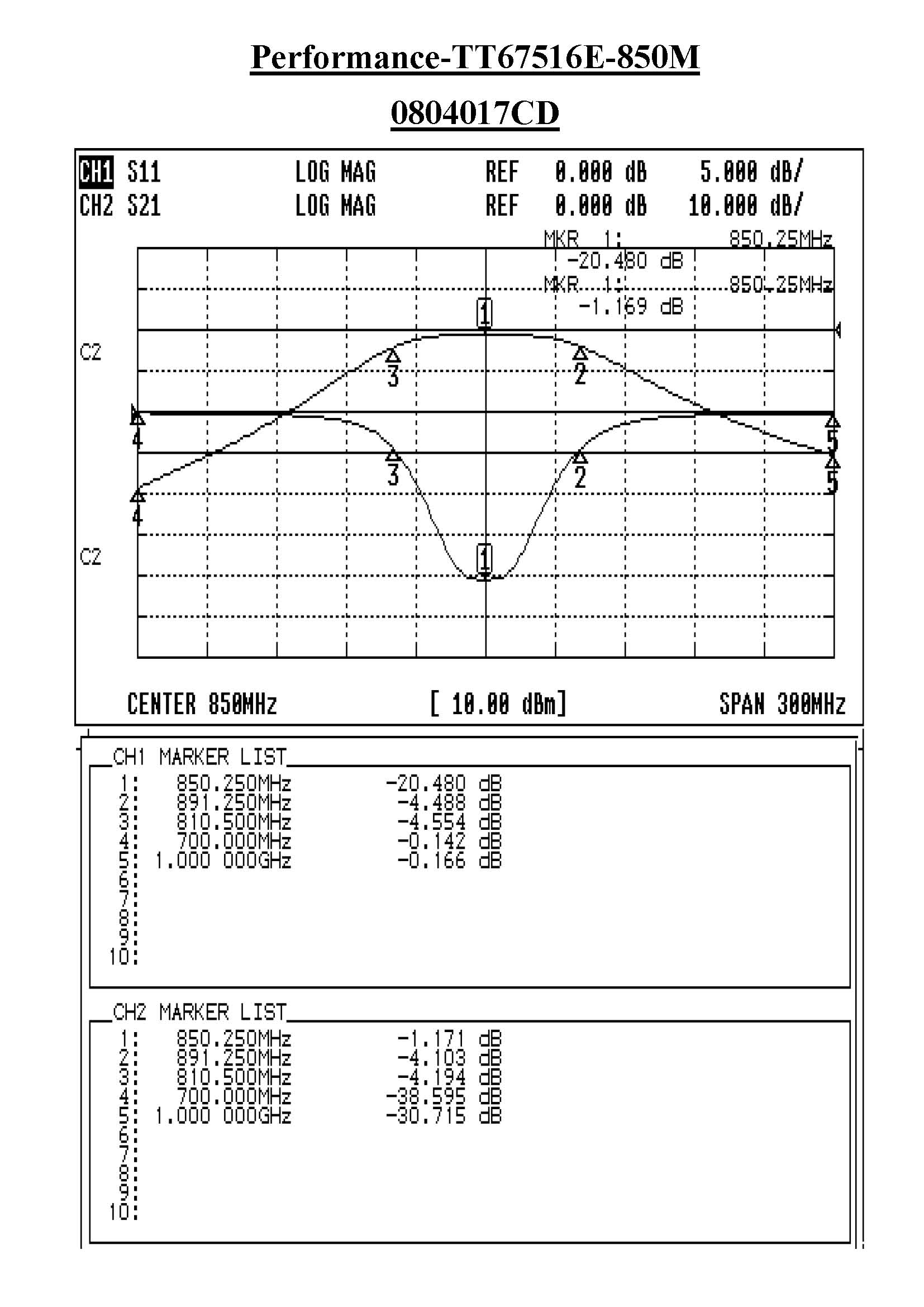

Detail Electronic Characteristic
| Item | Specify | |
|---|---|---|
| Center Frequency | 850M | |
| Insertion Loss | 3 | |
| -3 dB Bandwidth | 70M | |
| Sensitivity (Attenuation) |
F0-(150)Mhz | 34 |
| F0+(150)Mhz | 26 | |
| Return Loss | > 12 dB | |
| Impedence | In / Out :50 Ω | |
| Ripple | < 1 dB | |
Temperature Condition
| Item | Specify |
|---|---|
| Operating Temperature | 0C ~60C |
| Storage Temperature | -20C ~ +70C |
Mechanical Condtion
| Item | Specify |
|---|---|
| Size Diagram | 22.8 X 7.6 |
| Height | 12.5mm |
| Input Power | 1~5W |
