TF6955B1-137.5M Helical Tunable Bandpass Filter

TF6955B1-137.5M

Product Description

Item Specify
Reference Parts TF6955B1-137.5M
Acceptable 126～146M
Product Series 7H4
Stock Quantity 0

Detail Electronic Characteristic

Item Specify
Center Frequency 137.5M
Insertion Loss 4.5
-3 dB Bandwidth 6M
Sensitivity
(Attenuation)		 F0-(12)Mhz 33
F0+(12)Mhz 30
Return Loss > 12 dB
Impedence In / Out :50 Ω
Ripple < 1 dB

Temperature Condition

Item Specify
Operating Temperature 0C ~60C
Storage Temperature -20C ~ +70C

Mechanical Condtion

Item Specify

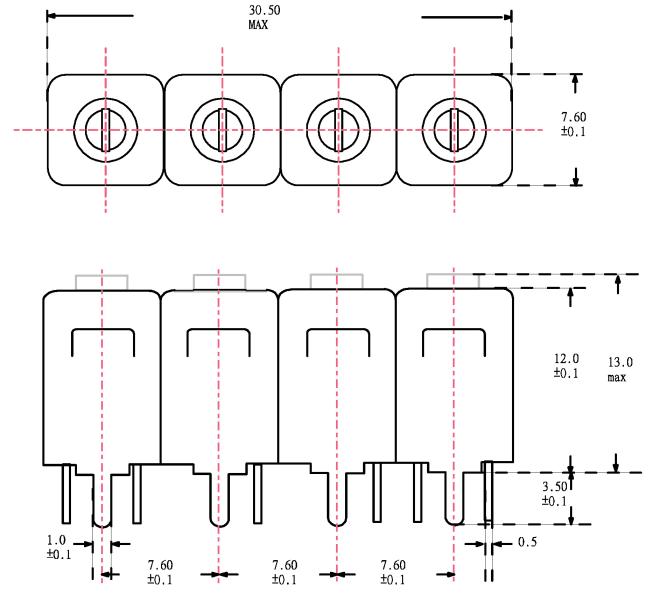

Size Diagram 30.5 X 7.6
Height 12.5mm
Input Power 1~5W
