TDS2073F-485M Helical Tunable Bandpass Filter

TDS2073F-485M

Product Description

Item Specify
Reference Parts TDS2073F-485M
Acceptable 456～515M
Product Series 7S2
Stock Quantity 0

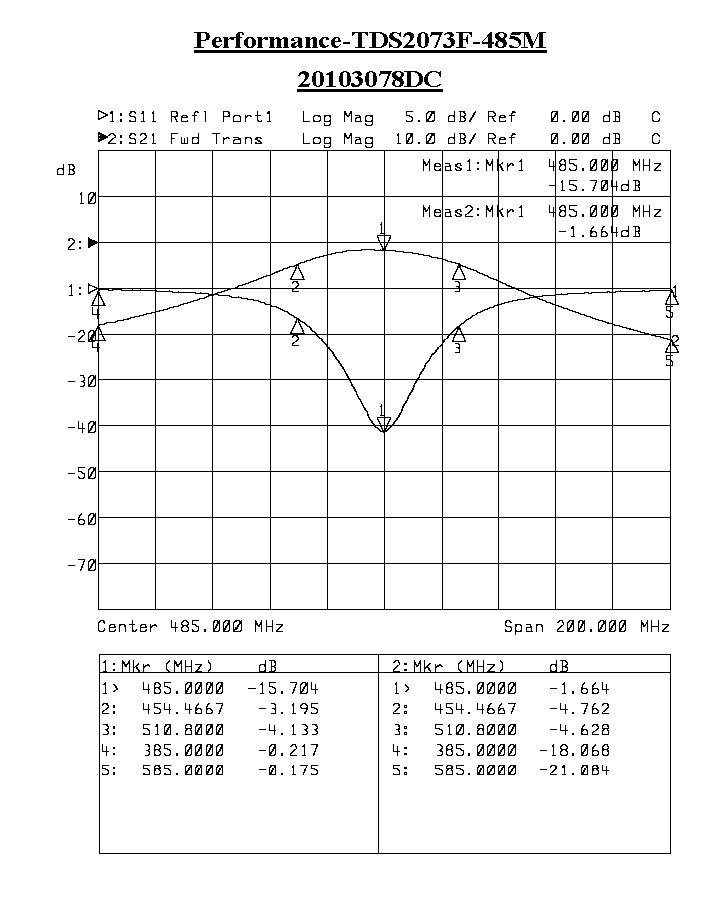

Detail Electronic Characteristic

Item Specify
Center Frequency 485M
Insertion Loss 2.5
-3 dB Bandwidth 51M
Sensitivity
(Attenuation)		 F0-(100)Mhz 14
F0+(100)Mhz 15
Return Loss > 12 dB
Impedence In / Out :50 Ω
Ripple < 1 dB

Temperature Condition

Item Specify
Operating Temperature 0C ~60C
Storage Temperature -20C ~ +70C

Mechanical Condtion

Item Specify
Size Diagram 15.2 X 7.6
Height 7.7mm
Input Power 1~5W
