K4RF-800M-20M Helical Tunable Bandpass Filter

K4RF-800M-20M

Product Description

Item Specify
Reference Parts K4RF-800M-20M
Acceptable 800～800M
Product Series K4
Stock Quantity 0

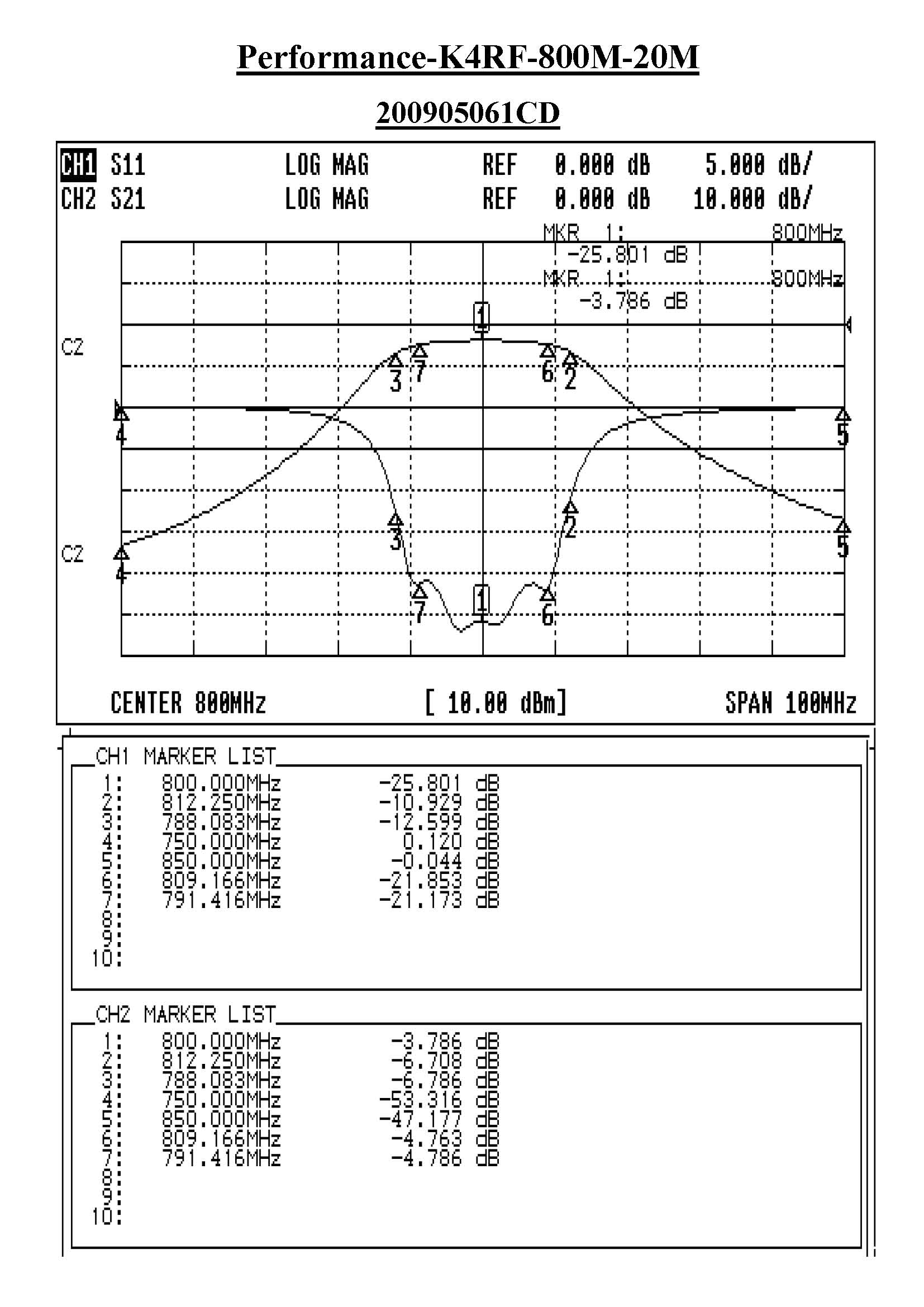

Detail Electronic Characteristic

Item Specify
Center Frequency 800M
Insertion Loss 4.5
-3 dB Bandwidth 20M
Sensitivity
(Attenuation)		 F0-(50)Mhz 46
F0+(50)Mhz 40
Return Loss > 12 dB
Impedence In / Out :50 Ω
Ripple < 1 dB

Temperature Condition

Item Specify
Operating Temperature 0C ~60C
Storage Temperature -20C ~ +70C

Mechanical Condtion

Item Specify
Size Diagram 22.4 X 5.6
Height 8.6mm
Input Power 1~5W
