Filter Store: Standard Toko alternative Filter for 5HW Series

2019-11-28

TEMWELL wish to advertise RF Helical Band Pass Filter as worldwide using RF components for all kinds of  transmission device design, communication device development, personal research and experiment, Amateur Ham Radio Activities,  and Academic Education purpose.

Temwell design and develop Toko Type Helical Filter as standard to replace Toko Filter in Toko-5HW Series. All items in series are 100% pin-to-pin match. Delivery in 72 hours and ready in stock now. All items in series are Delivery in 72 hours.


/storage/media/application/FilterStore/TOKO/Toko_Alternative1.JPG

/storage/media/application/FilterStore/TOKO/Toko_Alternative2.JPG

/storage/media/application/FilterStore/TOKO/Toko_Alternative-5H.JPG

/storage/media/application/FilterStore/TOKO/Toko_Alternative3.JPG

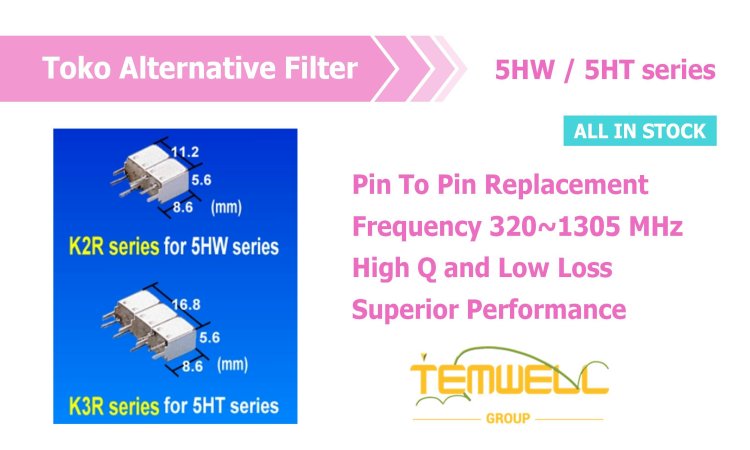

Temwell K2R Series for replaced Toko 5HW
50Ω Each Filter is Tunable  > ±5MHz
/storage/media/application/FilterStore/web-2pole.jpg
Product Specification:
Series : Temwell K2R Series as Toko 5HW Series
Tuning pole : Double Tuning
Centre Freq. (Fo) : 320~1305 MHz
Bandwidth (B.W.):  10~40MHz
Insertion Loss (I.L.): Max 4.0 dB
Case (H x L x W) : 11.2 x 5.6 x 8.6 mm
Uploaded date: Apr.02.2025

TEMWELL P/N

(Replaced Toko P/N)

Case

Fo / B.W / IL

MHz/MHz/dB

 Rejection

Q'ty

(pcs)

Order online
eK2RB-320M-10M 5R2 320 / 10.0 / 3.0 25dB @FC-50M/25dB @FC+50M 100 Buy
eK2RB-340M-10M 5R2 340 / 10.0 / 3.0 25dB @FC-50M/25dB @FC+50M 30 Buy

eK2RB-365M-10M

  (5HW-35045A-365TW)

 5R2 365 / 10.0 / 3.5 25dB @FC-50M/25dB @FC+50M 85 Buy

eK2RB-380M-10M

  (5HW-36535A-380TW)

 5R2 380 / 10.0 / 3.5 25dB @FC-50M/25dB @FC+50M 978 Buy

eK2RB-415M-10M

 5R2 415 / 10.0 / 3.5 25dB @FC-50M/25dB @FC+50M 217 Buy

eK2RB-425M-10M

  (5HW-39545A-425TW)

 5R2 425 / 10.0 / 3.5 25dB @FC-50M/25dB @FC+50M 849 Buy

eK2RB-430M-10M

  (5HW-40545A-430TW)

 5R2 430 / 10.0 / 3.5 25dB @FC-50M/25dB @FC+50M 443 Buy

eK2RB-450M-11M

  (5HW-40545A-450TW)

 5R2 450 / 11.0 / 3.5 22dB @FC-50M/25dB @FC+50M 237 Buy

eK2RB-474M-11M

  (5HW-44545A-474TW)

 5R2 474 / 11.0 / 3.5 22dB @FC-50M/25dB @FC+50M 506 Buy

eK2RB-475M-11M

  (5HW-44545A-475TW)

 5R2 475 / 11.0 / 3.5 22dB @FC-50M/25dB @FC+50M 427 Buy

eK2RB-505M-14M

  (5HW-47535A-505TW)

 5R2 505 / 14.0 / 3.5 20dB @FC-50M/25dB @FC+50M 50 Buy

eK2RB-530M-14M

  (5HW-51035A-530TW)

 5R2 530 / 14.0 / 3.5 20dB @FC-50M/24dB @FC+50M 1397 Buy

eK2RB-545M-14M

  (5HW-52535A-545TW)

 5R2 545 / 14.0 / 3.5 20dB @FC-50M/24dB @FC+50M 1278 Buy

eK2RB-625M-14M

  (5HW-58080A-625TW)

 5R2 625 / 14.0 / 3.0 20dB @FC-50M/16dB @FC+50M 919 Buy

eK2RB-650M-20M
  (5HW-367MN-101A)

 5R2 650 / 20.0 / 3.5 26dB @FC-100M/23dB @FC+100M 52 Buy

eK2RB-670M-20M

  (5HW-65535A-670TW)

 5R2 670 / 20.0 / 3.0 30dB @FC-100M/25dB @FC+100M 720 Buy

eK2RB-700M-20M

  (5HW-68050A-700TW)

 5R2 700 / 20.0 / 3.0 50dB @FC-100M/30dB @FC+100M
 81 Buy

eK2RB-735M-20M

  (5HW-73050A-735TW)

 5R2 735 / 20.0 / 3.0 40dB @FC-100M/30dB @FC+100M
 128 Buy

eK2RB-820M-20M

  (5HW-78045A-820TW)

 5R2 820 / 20.0 / 3.0 36dB @FC-100M/27dB @FC+100M 443 Buy

eK2RB-862M-21M

 5R2 862 / 21.0 / 3.5 34dB @FC-100M/26dB @FC+100M 30 Buy

eK2RB-880M-20M

  (5HW-82560A-880TW)

 5R2 880 / 20.0 / 3.5 36dB @FC-100M/27dB @FC+100M 30 Buy

eK2RB-914M-25M

  (5HW-88560A-914TW)

 5R2 914 / 25.0 / 3.0 30dB @FC-100M/23dB @FC+100M 725 Buy

eK2RB-959M-25M

  (5HW-94555A-959TW)

 5R2 959 / 25.0 / 3.5 25dB @FC-100M/20dB @FC+100M 30 Buy

eK2RB-1010M-26M

  (5HW-100090A-1010TW)

 5R2 1010 / 26.0 / 3.5 25dB @FC-100M/20dB @FC+100M 12 Buy

eK2RB-1130M-26M

  (5HW-109060A-1130TW)

 5R2 1130 / 26.0 / 3.5 25dB @FC-100M/20dB @FC+100M 59 Buy

eK2RC-1195M-35M

  (5HW-115045F-1195TW)

 5R2 1195 / 35.0 / 3.5 20dB @FC-100M/20dB @FC+100M 60 Buy

eK2RC-1225M-35M

  (5HW-120050F-1225TW)

 5R2 1225 / 35.0 / 3.5 20dB @FC-100M/20dB @FC+100M 60 Buy

eK2RC-1305M-35M

  (5HW-125055F-1305TW)

 5R2 1305 / 35.0 / 3.0 20dB @FC-100M/18dB @FC+100M 145 Buy
